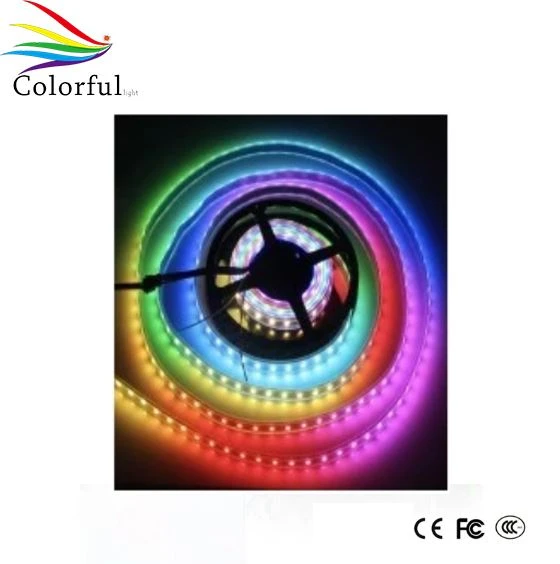

Product Name: LED RGB Strip Light (SMD5050)
Model: LD-01
Product Overview
Our LED RGB Strip Light delivers vibrant color mixing and reliable performance for architectural, commercial, and entertainment lighting. Built with premium SMD5050 LEDs and a flexible PCB design, it offers seamless installation and uniform illumination. Ideal for accent lighting, signage, and decorative applications.
Key Features
High-Density LEDs: 60 LEDs/meter (300 LEDs/5m roll) for bright, consistent lighting.
Flexible Design: Cuttable every 3 LEDs (5cm intervals) for custom lengths.
Easy Installation: Self-adhesive backing and waterproof options (silicone coating/drip tube).
Low Power Consumption: 12W/meter (12V low-voltage operation).
Customizable: Available in rolls up to 500 meters with compatible power supplies.
Technical Specifications
|
Parameter |
Specification |
|
Input Voltage |
12V DC (5050RGB) |
|
Light Source |
SMD5050 LEDs (5.0mm x 5.0mm) |
|
Power Consumption |
12W/meter (Max) |
|
LED Density |
60 LEDs/meter (300 LEDs/5m roll) |
|
Cutting Unit |
Every 3 LEDs (5cm intervals) |
|
Strip Dimensions |
Width: 10mm (Bare), 12mm (Drip Tube); Thickness: 1.8mm (Bare), 4mm (Drip Tube) |
|
IP Rating |
IP20 (Bare), IP65 (Silicone Coating), IP67 (Drip Tube) |
|
Roll Length |
500 meters/roll |
|
Accessories |
12V/400W Power Supply (for 20m setups) |
|
Packaging |
Outer Box: 480x280x215mm (8.95kg) |
Applications
Architectural Lighting: Cove lighting, ceiling accents, and outline lighting.
Commercial Use: Retail displays, signage, and hotel decor.
Entertainment: Stage backgrounds, TV studios, and event lighting.
Home Decor: Under-cabinet lighting, furniture accents, and holiday displays.
Manufacturing Strength
Precision Engineering:
Automated SMT assembly ensures perfect LED alignment and soldering.
Strict binning for color consistency (3-step MacAdam ellipse).
Quality Assurance:
100% electrical testing for voltage stability and color output.
IP65/IP67 validation with water immersion and dust tests.
Aging tests (72 hours) to verify longevity and performance.
Customization & Scalability:
OEM/ODM support: custom lengths, colors, and packaging.
High-volume production capacity (50,000+ meters monthly)
Why Choose Our Strip Lights?
Reliability: Industrial-grade materials (FPCB white soft board, copper circuits).
Safety: Low-voltage operation (12V) with overcurrent protection.
Global Compliance: CE, ROHS, and UL-certified components.
Eco-Friendly: Energy-efficient LEDs with 50,000-hour lifespan.
Packaging & Logistics
Protective Packaging: Anti-static wrapping + reinforced cartons.
Bulk Options: 500-meter rolls or custom cut lengths.
Global Shipping: FOB/CIF support with documentation for seamless import.
FAQ
Q: Can I cut the strip to custom lengths?
A: Yes, cut every 5cm (3 LEDs) along marked lines.
Q: Is a power supply included?
A: Sold separately; we recommend a 12V/400W supply for 20m setups.
Q: What controllers are compatible?
A: Works with all standard RGB controllers.
Q: What is the warranty?
A: 12 months against defects.
Other Key Features & Descriptions
Smart Control Compatibility
Seamless integration with DMX512, RF, and Bluetooth controllers
Compatible with popular lighting control systems (e.g., Art-Net, sACN)
Support for music sync and voice control through mobile apps
Environmental Specifications
Operating temperature: -20°C to +60°C
Storage temperature: -30°C to +80°C
UV-resistant silicone coating for outdoor applications
Anti-aging performance: >50,000 hours lifespan
Installation Advantages
3M VHB adhesive backing for secure mounting
Flexible design: bends horizontally up to 90°, vertically up to 180°
Optional aluminum channels available for better heat dissipation
Quick-connect connectors for tool-free installation
Quality Certifications
CE, ROHS, FCC, UL listed components
ISO 9001:2015 certified manufacturing
LM-79 and LM-80 test reports available
IP65/IP67 certification (depending on model)
Customization Options
Available in various colors: RGB, RGBW, single color
Custom lengths from 0.5m to 500m continuous
Special colors and CCT temperatures (2700K-6500K)
Private labeling and custom packaging
Technical Support
Free lighting layout design service
Detailed installation guides and video tutorials
24/7 technical support team
Spare parts and accessories available
Performance Features
CRI >80 (Standard), >90 (Optional)
Flicker-free operation (<5%)
Low voltage operation for safety
Uniform light distribution without hotspots
Energy Efficiency
60% energy saving compared to traditional lighting
Mercury-free and environmentally friendly
Low heat generation
Dimming capability from 0-100%
Packaging Details
Anti-static sealed packaging
Moisture-proof desiccant included
Custom packaging available for retail
Clear labeling with specifications
Warranty & Service
3-year extended warranty available
Replacement within 72 hours for defective products
Professional after-sales team
Regular quality follow-up checks
Global Applications
Suitable for 100-240V AC systems worldwide
Multiple plug options available
Compliance with international safety standards
Experience shipping to 50+ countries
Factory Capabilities
15 years of LED manufacturing experience
Fully automated production lines
In-house R&D team for custom solutions
Monthly production capacity: 100,000+ meters
Sustainability Features
RoHS compliant materials
Recyclable packaging
Energy-efficient production process
Carbon-neutral manufacturing initiatives
Safety Features
Over-temperature protection
Short-circuit protection
Reverse polarity protection
Fire-resistant materials
Additional Services
Free samples for qualified buyers
OEM/ODM customization
Logo printing and private labeling
Warehouse stocking programs
This product combines advanced LED technology with robust construction, making it suitable for both professional installations and DIY projects. The strip lights maintain consistent brightness and color throughout the entire length, ensuring professional-grade results every time.
