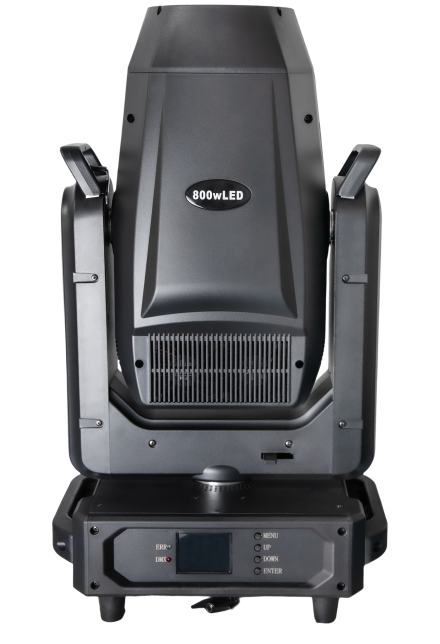

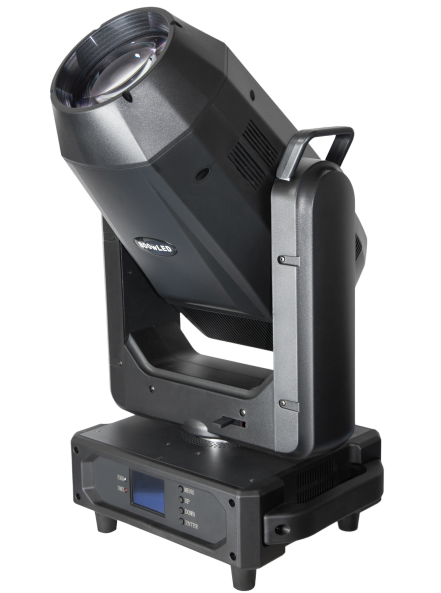

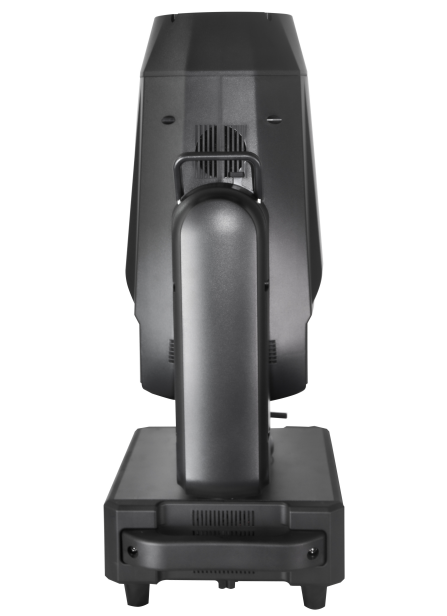

800W LED BSWF moving head light is a professional stage lighting fixture with a powerful 800W LED engine that can function as a Beam, Spot, or Wash light. Besides those funntions, it also integrated with frame function which can cut different shapes to set the actor centralized and highlighted. These hybrid fixtures are highly versatile, offering features like motorized zoom, focus, and a CMY+CTO color mixing system for precise color control, as well as rotating and static gobo wheels for patterns and prisms for dynamic effects. They are ideal for concerts, theaters, and other large events requiring a versatile and high-output light source.

Technical Parameters

Input voltage:Ac100-240V,50/60Hz

Rated power:950V

Light source: 800w LED module

LED life: 20,000 hours

Color temperature:6500k

Caliber 138mm Frontal lens for greater performance

Color rendering index: Standard mode Ra>70, high CRI mode Ra>90

Signal interface: three pin XLR (five pin XLR optional)

Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation

Channelmode:34CHs

Display system: 2,8 inch touch LCD display, Chinese and English display,180-degree rotation

Fixed color 5 colors + open position

Color mixing system: independent CMY color mixing system

Color temperature adjustment: independent CTO 2500K-6500K

linear adjustment

Prisms: Rotating 3faced prism

Fixed Gobo wheel: 6 fixed gobos+open position

Rotating Gobo wheel:7plug in gobos +open

Framing system:4 Individually positioned Shutter Blades, each

piece can be closed separately and can be rotated+/_90

Frost system:0-100% linear atomization

Iris system:6%-100% smooth adjustment

Beam Aperture: 4.8°-50°fast motorized linear zoom

Dimming system:0-100% linear adjustment

Strobe system: the highest frequency can reach 25Hz, and random

strobe and pulse strobe can be selected

Pan: 540"(16 bit precision scanning)

Tilt: 270"(16 bit precision scanning)

Protection rate:lP20

Working environment:0-45degree

Product Size: 693mm * 390mm * 282mm

Product net weight:28KG

Packing dimensions: 505mm * 365mm * 795mm

Gross weight: 32 KG

Why choose BSW moving head light?

A BSW stage light is a high-tech, motorized "moving head" light fixture designed for professional stage productions, concerts, and events. BSW stands for Beam, Spot, and Wash, indicating the fixture's ability to produce three distinct lighting effects-a narrow, focused beam; a wider, gobo-projecting spot; and a broad, soft wash. These "3-in-1" fixtures offer dynamic movement, precise control over features like color and focus, and integration into complex lighting systems, enhancing the visual experience of performances.

What does CMY and CTO mean for a stage light?

In stage lighting, CMY stands for Cyan, Magenta, and Yellow, which are filters that subtract color from a white light source to create a vast spectrum of hues through a technique called subtractive color mixing. CTO stands for Color Temperature Orange, a filter used to warm a light's color by lowering its color temperature, making it appear more orange or amber. Together, CMY and CTO provide precise and comprehensive control over a light fixture's color and color temperature.

What's the difference between beam lights and bsw lights?

The primary difference is that "Beam" describes a type of narrow, focused light effect often seen in moving head lights, while "BSW" is an abbreviation for "Beam, Spot, and Wash," referring to a versatile fixture that combines these three distinct lighting functions. A beam light creates the tightest beam for aerial effects, a spot light creates a focused but adjustable beam with gobos and prisms, and a wash light creates a broad, diffuse, and color-changing light.

Beam Lights
Function	To produce a highly focused, narrow beam of light, similar to a laser.
Effect	Creates powerful, visible aerial effects that cut through fog or haze, making them ideal for creating patterns and sharp lines in the air.
Usage	Popular for high-energy performances, DJ sets, and club environments.
BSW Lights
Function	A BSW moving head light is a single unit that can perform three different functions
Versatility	Offers a single fixture with a wide range of capabilities, allowing lighting designers to switch between effects seamlessly from a single source.
Applications	Used in various settings, including concerts, weddings, and theatrical productions, to create a mix of effects from single units.
