550W Bee Eye LED Moving Head Light with RGBW Color Mixing and Linear Zoom

1. Product Overview

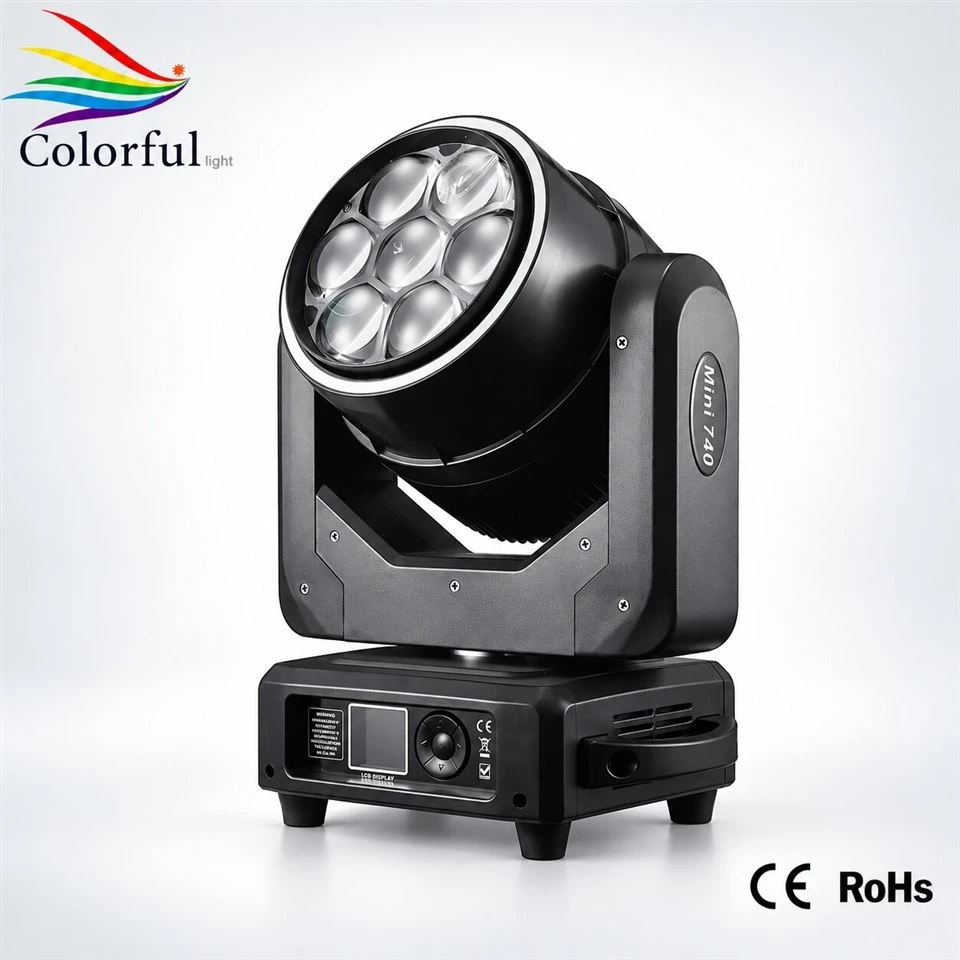

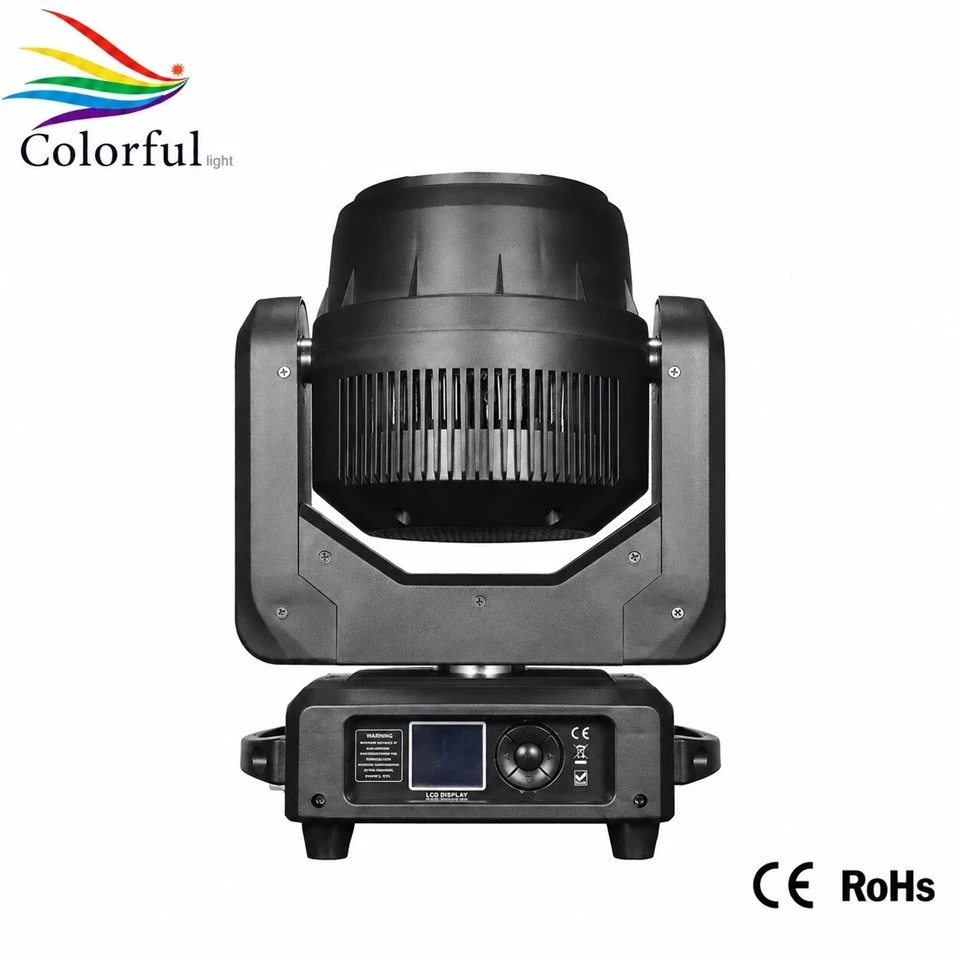

The 7*60W Bee Eye LED Moving Head Light is a versatile stage lighting fixture designed for professional entertainment, live events, and dynamic stage productions. Combining seven 60W RGBW 4-in-1 bee-eye LEDs with 32 additional 0.2W 5050 LED strips, this fixture delivers vibrant color effects, flexible beam shaping, and dynamic visual possibilities for a wide range of lighting applications.

Featuring a 4.5°–60° linear zoom system, individual LED control, motorized pan and tilt movement, and multiple operating modes, this moving head offers lighting designers greater flexibility when creating different stage atmospheres. From concentrated beam effects to wide color washes, it provides multiple lighting possibilities within a single fixture.

With a rated power consumption of 550W, a bilingual color TFT display, and support for DMX512, automatic, master/slave, and sound-activated operation, this fixture is designed to meet the practical requirements of professional lighting installations, entertainment venues, and event rental companies.

2. Key Features and Advantages

7 × 60W RGBW Bee Eye LED Light Source

The fixture features 7*60W RGBW 4-in-1 color-mixing LEDs, providing a flexible foundation for creating colorful stage lighting effects. The RGBW color-mixing system supports smooth color transitions and uniform color blending, helping lighting designers create a variety of visual atmospheres.

The multi-lens bee-eye design also supports distinctive honeycomb-style lighting effects, making the fixture suitable for applications where both beam presentation and visual impact are important.

32 × 0.2W 5050 LED Strips

In addition to the main LED light source, the fixture incorporates 32 × 0.2W 5050 LED strips. These additional LEDs expand the fixture's visual design possibilities and complement its main lighting effects.

The combination of the main RGBW LED array and auxiliary LED strips gives lighting designers more options for creating dynamic lighting presentations in clubs, performance venues, and entertainment productions.

4.5°–60° Linear Zoom

The integrated linear zoom system provides an adjustable beam angle from 4.5° to 60°, allowing users to switch between narrow beam presentations and wide-area wash effects.

The narrow beam setting is suitable for concentrated lighting effects and visually defined beams, while the wider setting can provide broader color coverage for stages, performers, and venue environments.

This adjustable beam range makes the fixture adaptable to different stage layouts and creative lighting requirements without needing to change fixtures.

Contact now

Individual LED Control and Dynamic Effects

The fixture supports single-point individual control, allowing compatible control configurations to address individual light points for more detailed effect programming.

Its lighting functions include color wash, strobe, zoom, and honeycomb beam effects. These functions provide a flexible toolkit for creating changing visual patterns, rhythmic lighting sequences, and energetic stage presentations.

The fixture is suitable for lighting designers seeking a combination of color effects, movement, and beam variation in one moving-head unit.

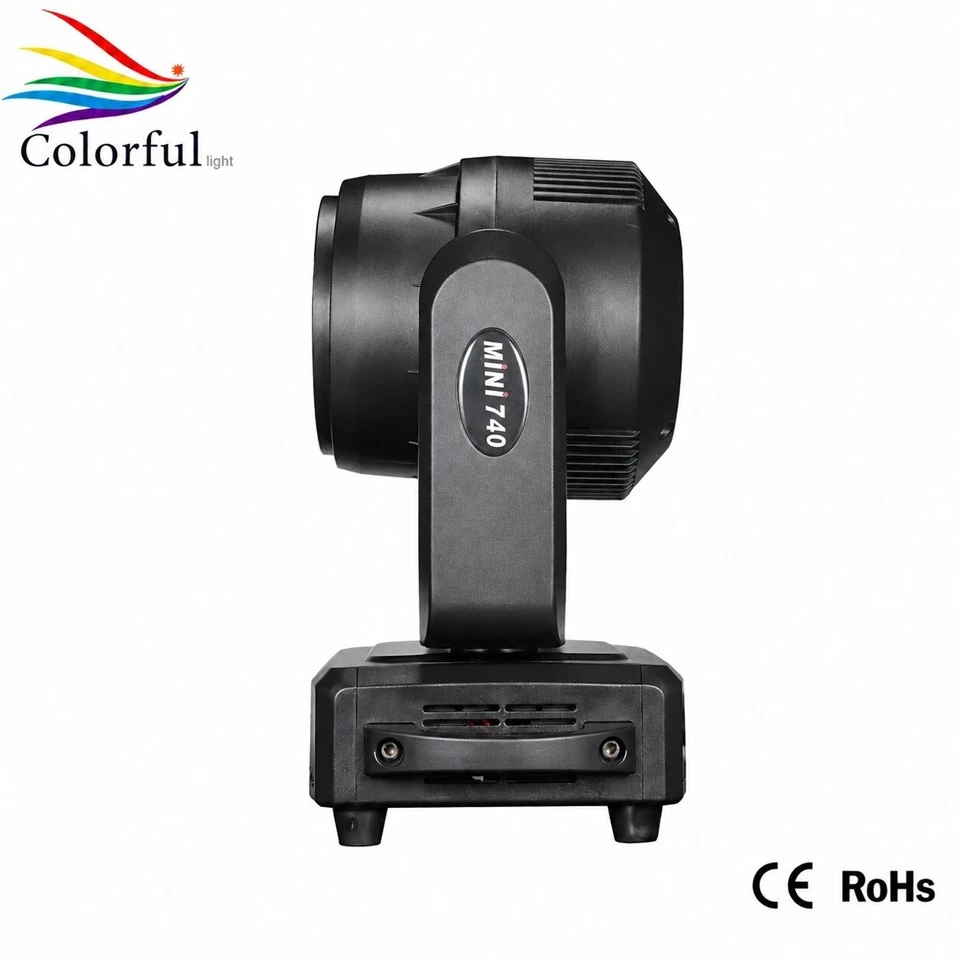

Motorized Pan and Tilt Movement

The moving head supports 540° pan and 270° tilt, with 16-bit movement control for both axes.

This motorized movement system enables the fixture to direct light across different areas of a venue and create dynamic movement patterns during performances. It can be integrated into lighting arrangements for concerts, DJ performances, dance floors, and other entertainment environments.

Smooth 0–100% Dimming

The fixture supports dimming from 0% to 100%, giving operators control over light intensity for different scenes and performance requirements.

Combined with RGBW color mixing, strobe effects, and adjustable zoom, the dimming function provides additional flexibility when creating transitions between lighting scenes.

3. Flexible Control Options

The 550W Bee Eye Moving Head supports four operating methods:

DMX512 control

Automatic operation

Master/slave operation

Sound-activated operation

Three channel modes are available: 42CH, 30CH, and 58CH. These options allow lighting professionals to select a channel configuration appropriate to their control setup and programming requirements.

The fixture is equipped with a 1.77-inch color TFT display featuring a Chinese/English bilingual interface. The display supports menu navigation and convenient access to operating settings.

Additional information available through the interface includes recorded device usage time, operating hours, device temperature, channel data, and software version information. The customizable settings menu and built-in program recall functions also support routine configuration and operation.

4. Built for Practical Stage Applications

The fixture operates on AC 110–240V, 50/60Hz, making it compatible with power systems within the specified input range.

Its stated operating temperature range is -20°C to 40°C. The luminaire uses new fire-resistant engineering plastic material, and the specified net weight is 6.8 kg.

The light source has an approximate operating life of 50,000 hours. Actual service life may vary depending on operating conditions, maintenance, and usage patterns.

These specifications make the fixture a practical option for professional lighting businesses looking for a moving head that combines color effects, adjustable beam coverage, and motorized movement in one unit.

5. Recommended Applications

Stage and Live Event Production

Use the fixture to create colorful lighting scenes, moving beams, and dynamic visual effects for concerts, live performances, and event stages.

Nightclubs and DJ Venues

The RGBW color-mixing system, strobe function, adjustable zoom, and bee-eye effects offer multiple possibilities for dance-floor lighting and music-synchronized visual presentations.

Entertainment Venues

The combination of wash effects, movement, and adjustable beam angles makes the fixture suitable for bars, clubs, performance spaces, and other indoor entertainment environments.

Lighting Rental Companies

Its multiple control modes and channel configurations offer flexibility for different rental projects, event layouts, and lighting console setups.

Stage Lighting Distributors and Integrators

For distributors, resellers, and professional lighting integrators, this fixture provides a combination of core moving-head functions and distinctive bee-eye effects for consideration in a diverse lighting product portfolio.

Contact now

6. Technical Specifications

7. Why Choose This Bee Eye Moving Head?

For professional lighting distributors, rental companies, and stage lighting integrators, product versatility is an important consideration when selecting equipment for different projects.

The 550W Bee Eye LED Moving Head combines a multi-LED light source, individual light-point control, adjustable beam coverage, motorized movement, and multiple operating modes. This combination allows the fixture to serve several lighting roles, from color wash presentations to dynamic beam effects.

Its 30CH, 42CH, and 58CH configurations provide options for different control requirements, while the bilingual display supports straightforward menu navigation. The 6.8 kg net weight is also a useful specification for businesses evaluating equipment handling and installation requirements.

Whether you are expanding a stage lighting inventory, sourcing fixtures for entertainment venues, or developing a professional lighting product portfolio, this bee-eye moving head offers a versatile combination of lighting functions in a single unit.

Contact Colorful Light to request a quotation, confirm product configuration, and discuss your project requirements. Our team can assist professional distributors, rental companies, and lighting integrators with product information and cooperation opportunities.
